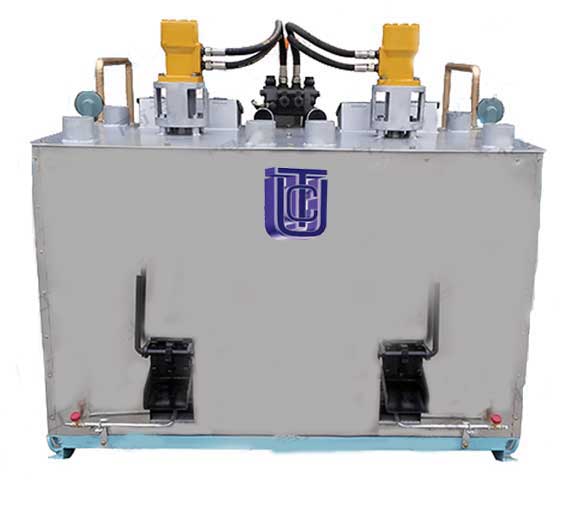

Thermoplastic preheater(premelter) is used for preheating, melting, and stirring paint continuously, preparing hot melt materials for the thermoplastic machine during long distance road lines marking work.
Dimensions: 1730 x 1650 x 1190mm, 1730 x 1650 x 1550mm, 1730 x 1650mm, 1730 x 850 x 1550mm
Total weight: 650 Kg, 780 Kg, 1100 Kg, 1280 Kg
Paint capacity: 600 Kg, 900 Kg, 1000 Kg, 1200 Kg
Diesel engine: 8 Pi, 15 Pi
Hydraulic tank: 30 Kg
Heating method: Liquefied petroleum gas
Melt temperature: 300 deg. C
Heating System: DI attempting
Bottoms material: boiler plate
Mixing system: BM hydraulic motors, stir cage
Insulation system: Quality glass cotton insulation, thermal insulation effect is good, longer holding time.
